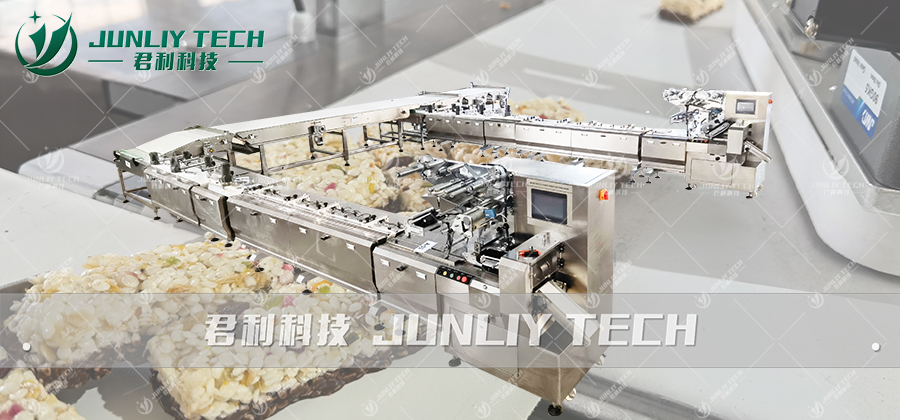

It is applied for the pillow packing of products with easy broken surface,such as chocolate,wafer,puffing food,rice cake,cake,Swiss roll,caramel treats,nougat,candy floss and other types of candies or enrobing products.
 |  | |  |
1-TOUCH SCREEN packing speedtemperature capacity,bag length etc.all display | 2- ROLL FILM SHAFT The multi linkage film winding shaft coordinates the film pullingand the film walking is more smooth | 3- NINE SERVO CONVEYOR BELT High speed sorting products, fast arrangement, convenientpackaging | 4-FIRM SEALING Rotatingconstanttemperature hot knifebeautiful embossing and firm sealing |
1. NINE Servo motors, touch screen control.
2. Automatic feeding for the complete packing line.
3. Automatic belt speed adjustment through frequency converter, every conveyor belt is individual.
4. Conveyor belt automatic deviation device through cylinder and photocell.
5. Automatic temperature cooling through the air condition with two fans, air cooling or water cooling available.
6 .Double paper rollers, automatic paper splicer device (paper splicer device designed according to Germany Bosch)
| Packing Speed | 50-1200pcs/min |
| Product Dimensions | According to real product size |
| Total Power | 9.5kw |
| Outside Dimensions | 8900mm*1180mm*1786mm(L*W*H) |
| Net Weight | 3300kg |
| Power Source | 400V;50HZ,3phase(can customized) |
 |  |  |  |
| Oat Choco Bar Machine | Nougat Bar Machine | Puffed Cereal Bar Machine | Cereal Bar Machine |
Phone/WhatsApp/WeChat:+86 15851039938
E-mail：janny@junliy.com
Youtube：https://www.youtube.com/channel/UCU0SAW7zSwGZdo9re0Po_Aw
It is applied for the pillow packing of products with easy broken surface,such as chocolate,wafer,puffing food,rice cake,cake,Swiss roll,caramel treats,nougat,candy floss and other types of candies or enrobing products.
| | | |
1-TOUCH SCREEN packing speedtemperature capacity,bag length etc.all display | 2- ROLL FILM SHAFT The multi linkage film winding shaft coordinates the film pullingand the film walking is more smooth | 3- NINE SERVO CONVEYOR BELT High speed sorting products, fast arrangement, convenientpackaging | 4-FIRM SEALING Rotatingconstanttemperature hot knifebeautiful embossing and firm sealing |
1. NINE Servo motors, touch screen control.
2. Automatic feeding for the complete packing line.
3. Automatic belt speed adjustment through frequency converter, every conveyor belt is individual.
4. Conveyor belt automatic deviation device through cylinder and photocell.
5. Automatic temperature cooling through the air condition with two fans, air cooling or water cooling available.
6 .Double paper rollers, automatic paper splicer device (paper splicer device designed according to Germany Bosch)
| Packing Speed | 50-1200pcs/min |
| Product Dimensions | According to real product size |
| Total Power | 9.5kw |
| Outside Dimensions | 8900mm*1180mm*1786mm(L*W*H) |
| Net Weight | 3300kg |
| Power Source | 400V;50HZ,3phase(can customized) |
| | | |
| Oat Choco Bar Machine | Nougat Bar Machine | Puffed Cereal Bar Machine | Cereal Bar Machine |
