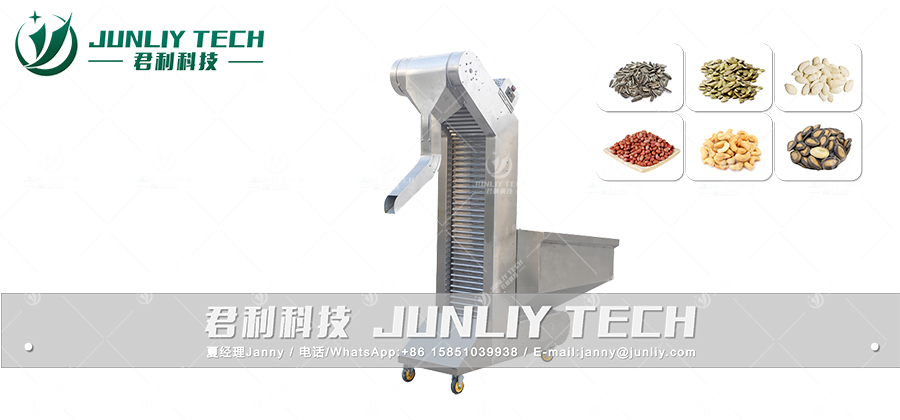

Vertical Z Type Bucket Elevator

Vertical Z Type Bucket Elevator can be widely applied in horizontal and vertical convey for solid food, such as rice, chip potato, candy feedstuff, and so on. Vertical Z Type Bucket Elevator composes the automatic quantitative packing  system combined with the weight and packing machine, which is applying widely.

Vertical Z Type Bucket Elevator takes product (usually from a Vibrating Feeder) up to a higher level. It takes product in its buckets, convey the buckets vertically up and feed into the target equipment. The Vertical Z Type Bucket Elevator has the features of large conveying capacity, high lifting height and so on. This Vertical Z Type Bucket Elevator is made of stainless steel and food grade plastic polypropylene (PP) which is hygienic and safe for food. Vertical Z Type Bucket Elevator starts and stops feeding automatically with the help of control circuit and lever sensor.

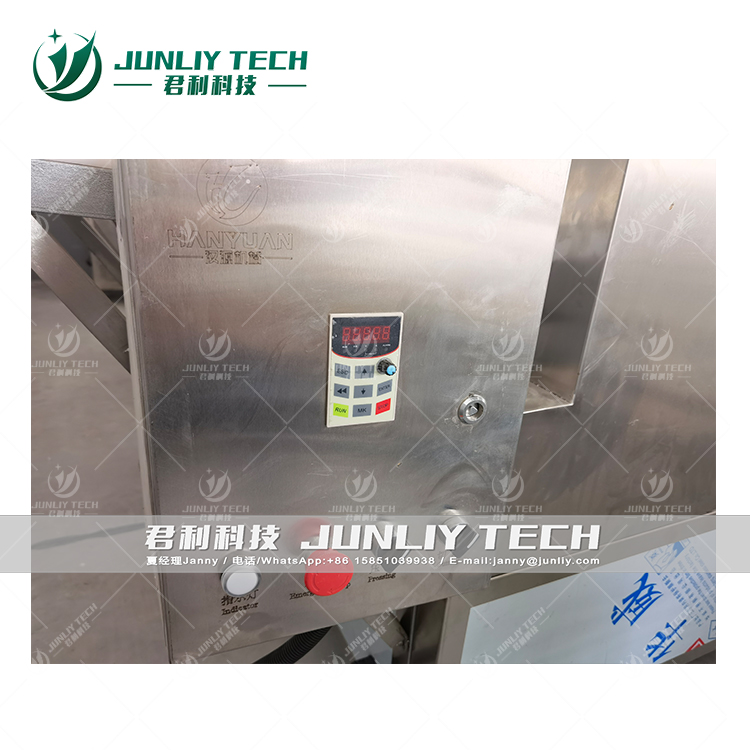

Single or multiple outlets avail-able	Electric box Control speed and easy to control.	Chain tension device and over-load protection Automatic chain tension device and built-in overload protection.	Chain Stainless steel or as requiped

Model	Bucket Volume	Output	Bucket Material	Voltage(v)
ZT-1.0L	1.0L	2-3.5m3/h	PP, ABS, SS304, or other	220V/50Hz, single phase 380V/50Hz, three phases Or as required
ZT-1.8L	1.8L	4-6 m3/h
ZT-3.8L	3.8L	6.5-8 m3/h
ZT-6.5L	6.5L	8.5-12m3/h
