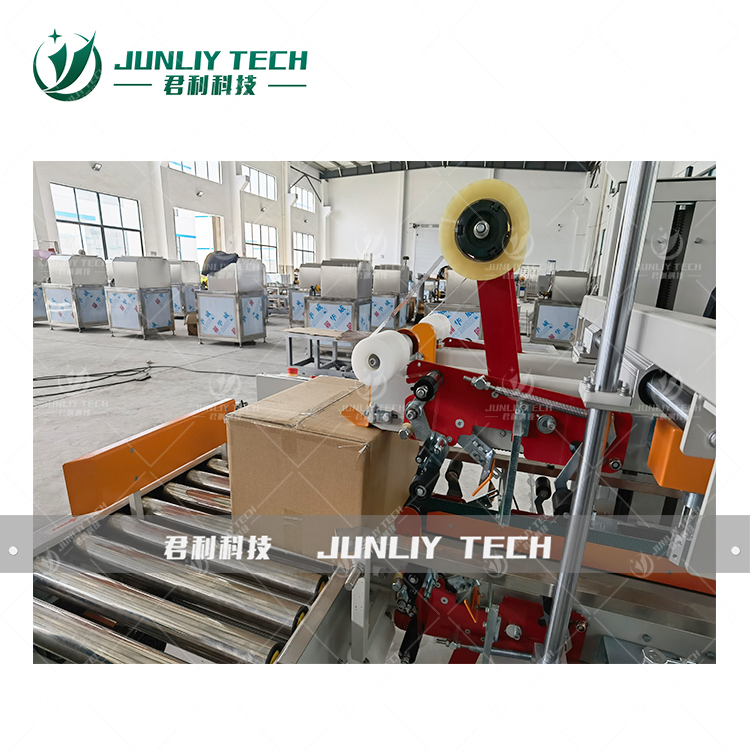

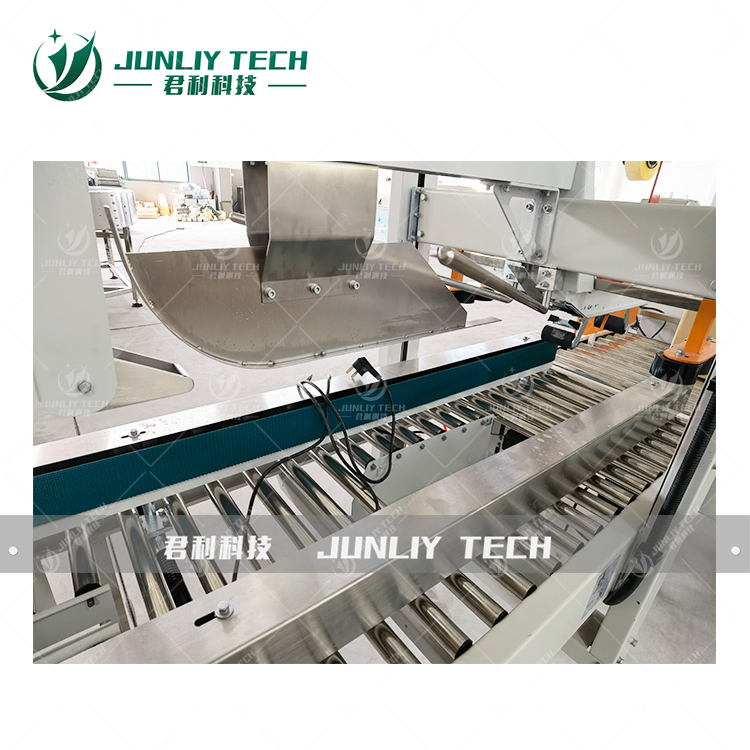

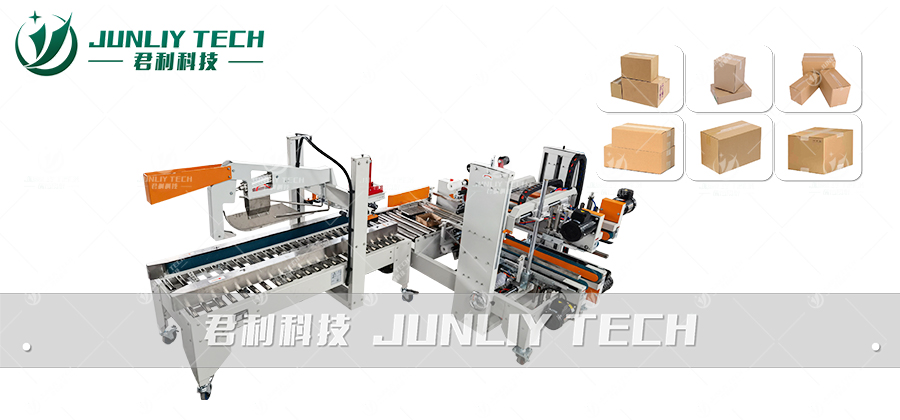

Automatic Cartoning Sealing Machine

    Automatic carton sealer is mainly used to seal cartons, which can operate alone and can also be equipped into production line. It is suitable for circumstance where the size of cartons does not change frequently, which especially fits for continuous sealing of cartons in the same size. The machine is used in the fields of domestic electrical appliance, foodstuffs, general merchandise, medicine and chemical industries.

1. Manually adjust the width and height according to the carton specifications;

2. The belt drive on both sides is suitable for the sealing of larger and heavier products, economical, fast and stable;

3. Equipped with blade guards to avoid accidental stab wounds.

4. Can be a single machine operation, can also be used with the automated packaging line.

Automatic folding carton cover,up and down automatically labeled tape, fast, smooth.	According to carton size, width and height manually adjustable.	Simple operation,can also be used with automated packaging lines.	Equipped with blade guards to prevent accidental operation stabbed.

Mode	YPK-4012	FXJ-AT5050	FXJ-P5050	MH-102B
Power	200W 50/60Hz	240W 50HZ	240W	600W
Voltage	220v/380V	220V 1ph can be customized	220/380V	220/380V
Machine dimension	L2100*W2100*H1480mm	L1020*W850*H1450mm	L2000*W1200*H1500mm	L1900*W630*H1760mm
Packing Size	L450*W400*H400 L250*W150*H100	Mini Size:L& W120*120 Max Size:L&*500*500	L450*W400*H400 L250*W150*H100	W800*H600mm
Net weight	450kg	120KG	730kg	150kg
Capacity	9-12carton/min	15-20carton/min	15-20cartons/min	2.5S/strp
Tape width	48-75mm	48~75mm	48-75mm	PP tape

For reference only
