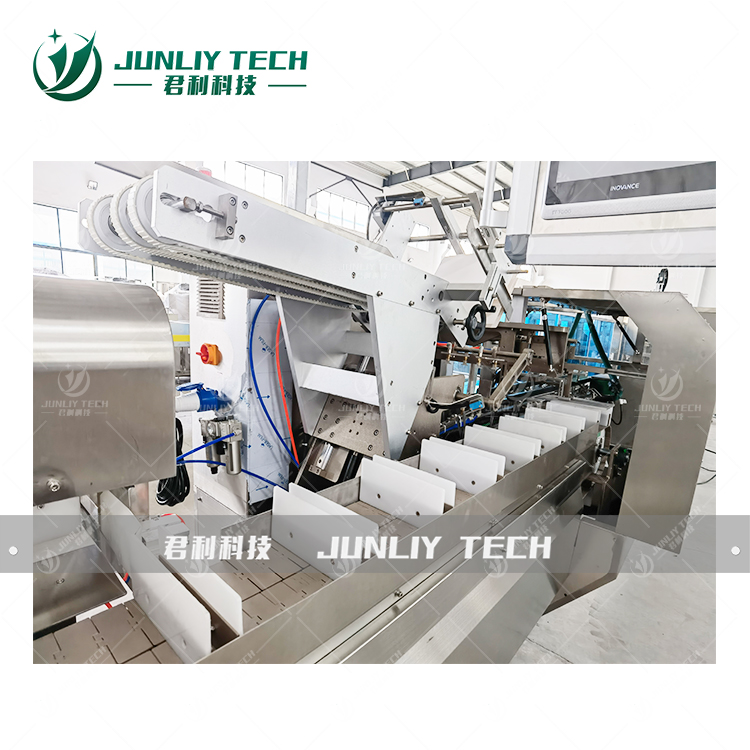

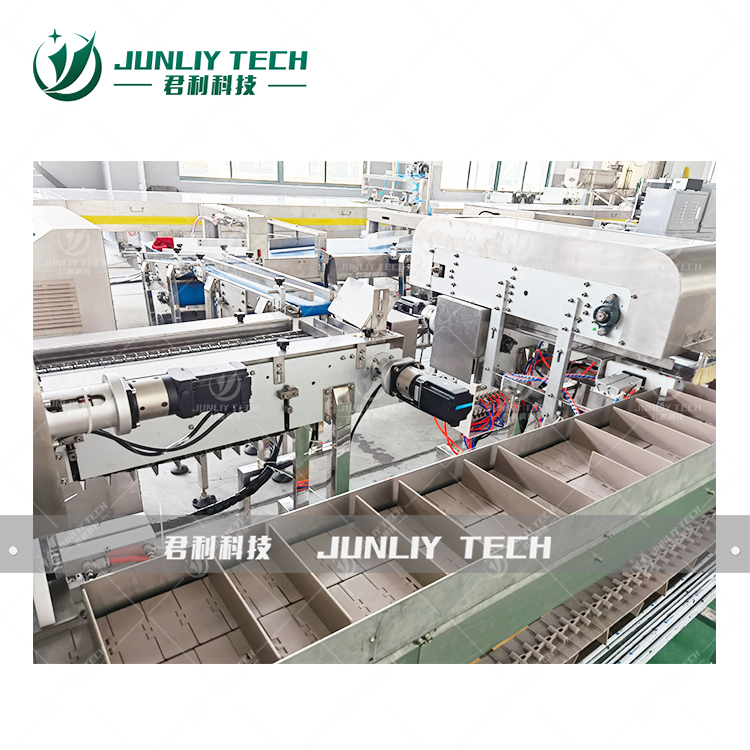

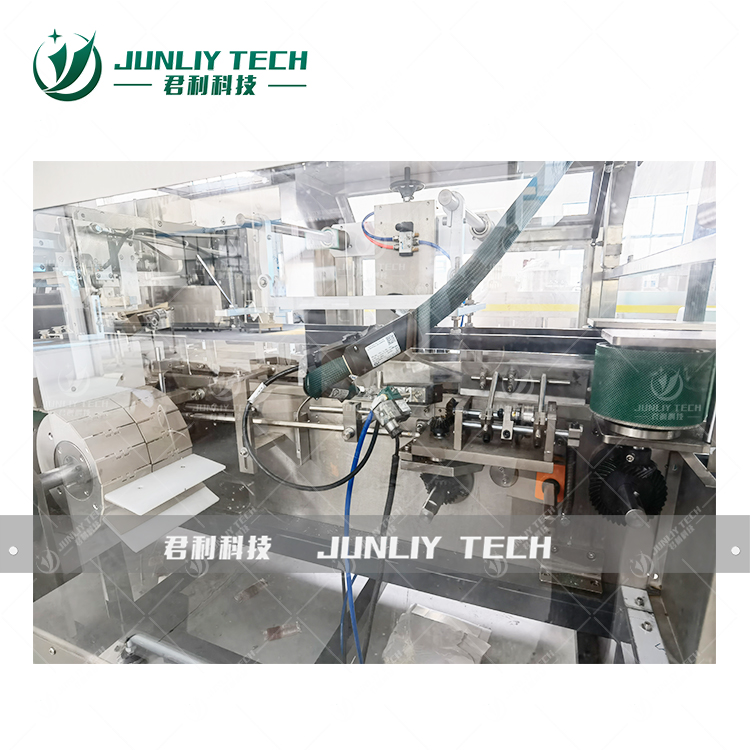

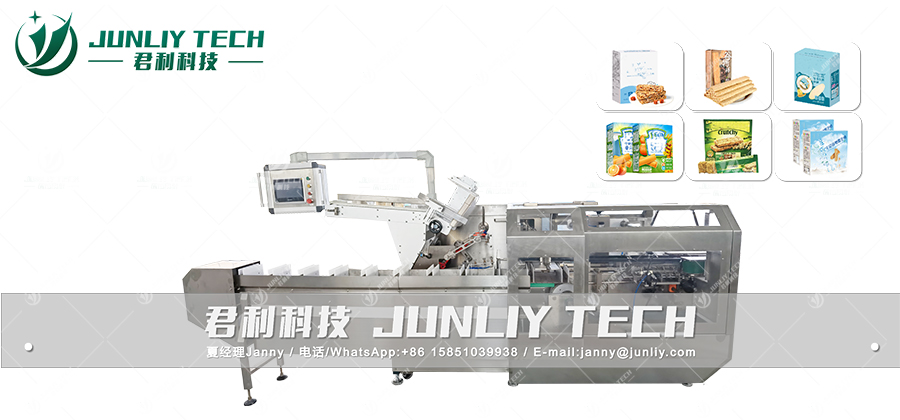

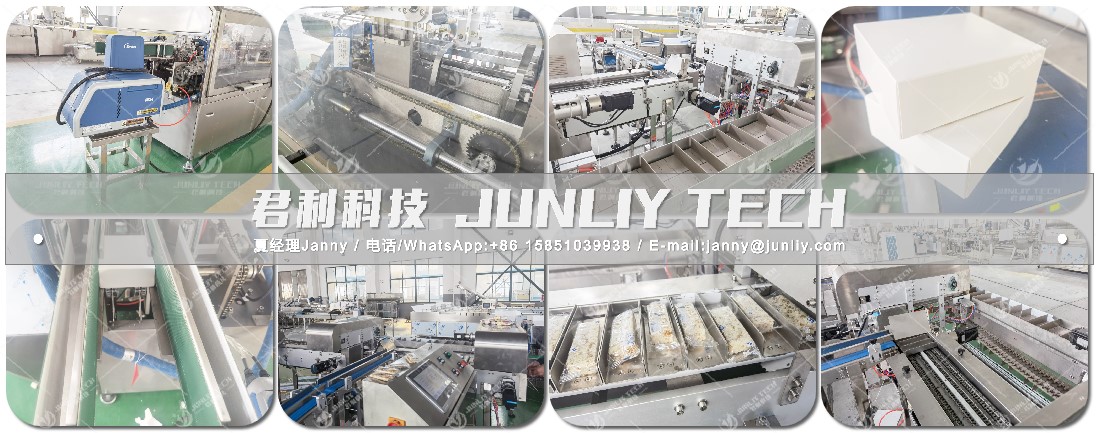

Automatic Cereal Bar Box Packing Machine

  Automatic Box Machine is suitable for pharmaceuticals, food, household chemicals, hardware and electrical industries for the packaging of blisters, bottles, vials, pillow packs, toothpaste, ect. It can fold leaflets, open cartons, insert the products and leaflets into cartons, emboss, tuck-in or hot-melt closures and automatically discharge cartons.

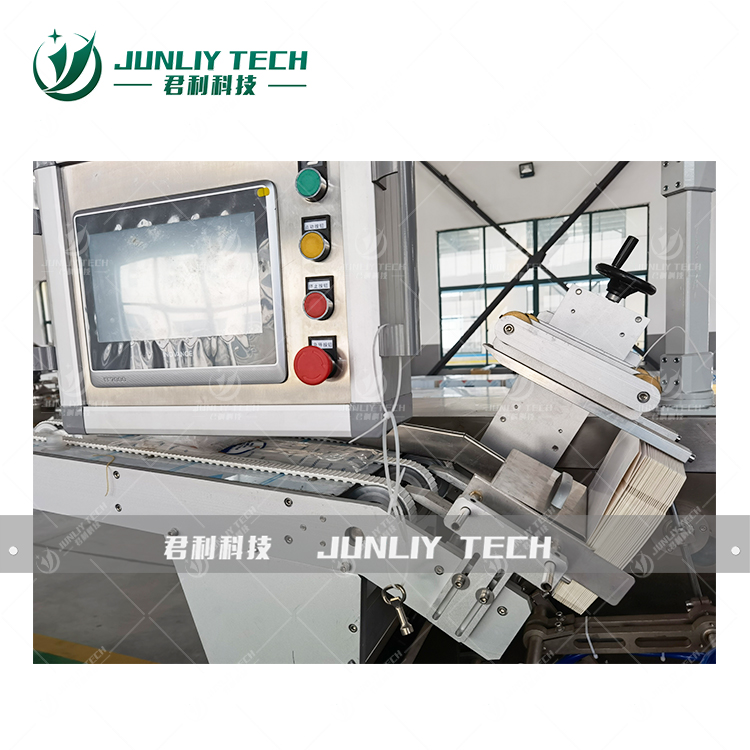

Material Container	Human -machine interface aviation operating system	Rotary Carton feeder	Automatic box loading system

1- Rotary carton feeder available .

2-Automatic Cereal Bar Box Packing Machine with compact machine design and robust stainless steel construction.

3 -Automatic Cereal Bar Box Packing Machine is easy to operated it.

4- Large range of formats, fast changeover.

5- Reliable production ,even with a variety of carton qualities.

6 -Flexibility in the layout design for a custom-tailored supply.

Model		HY- HC 80
Max.output		80 box/min
Box	Max.box size	320x90x50 mm (LxWxH)
	Min.box size	150x50x30 mm (LxWxH)
	Quality requirement	250-400 g/㎡  Pre-folded with deep indentations
Types of closure		Hot-melt or Tuck-in
Max power		6.5 kW
Power supply		380V 50HZ
Compressed air	Working pressure	0.6-0.8 Mpa
	Consumption	150-200 L/min
Safety cover		Organic glass
Machine dimension		5000x2020x1800mm
Weight (Approx.)		2000KG

 For reference only, different models, parameters will be changed
