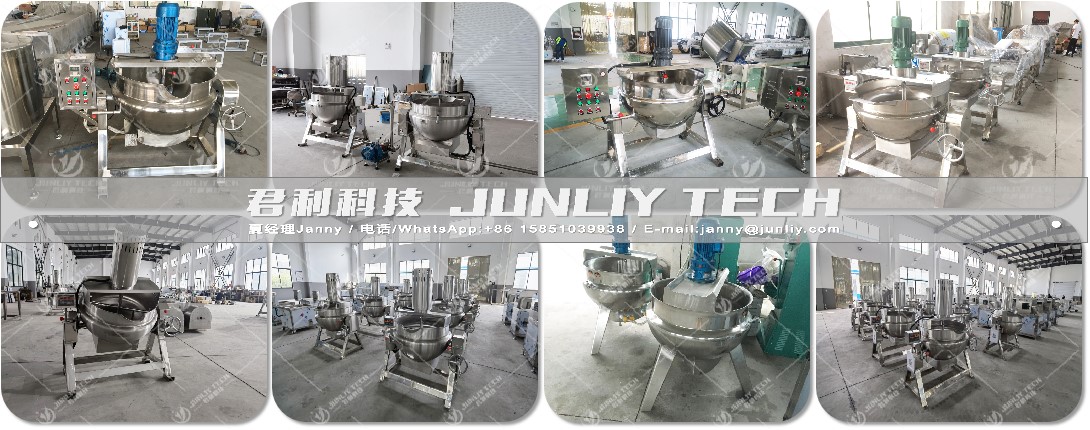

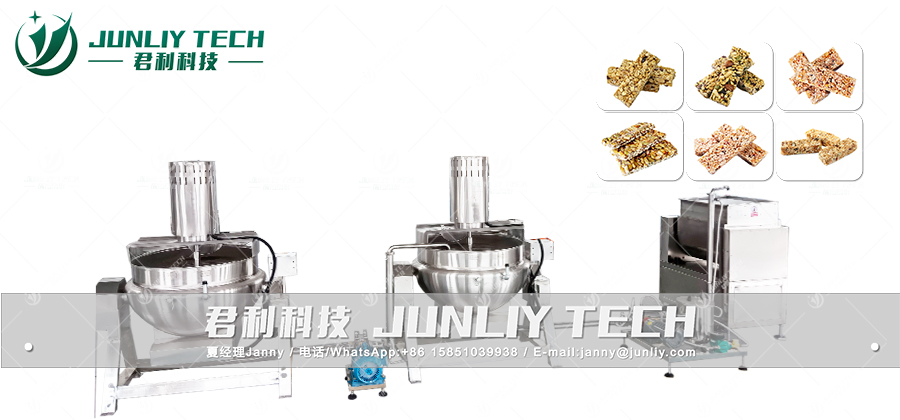

Automatic Sugar Cooking System

  Automatic Sugar Cooking System is consist of electrically-heated sandwich pot,pipes,rotor pumps,warm system,mixing machine etc.

  This  Automatic Sugar Cooking System is used widely for pharmacy,food,chemical industry. To cook ,boiling ,concentrator .according to client requirement :it can use hot steam and electrical heating sources .Also it can add the agitator and cover .All depend on clients

  Pumps of this  Automatic Sugar Cooking System are widely used in a variety of industries including, pulp and paper, chemical, food, beverage, pharmaceutical, and biotechnology due to its ultra-low shear feeding.

  The electrically-heated sandwich pot is mainly composed of the pot body and bracket.The pot body is a double-layer structure composed of the inner shape of the pot body, and the middle layer is filled with heat conducting oil.The electric heating sandwich pot USES 380V/220V power as the heat source. The sandwich pot is equipped with an electric heating rod, an electric heating couple and a heat conducting oil (self-configured), which can reach up to 320 degrees.

  It is controlled by an electric control box and equipped with an internal temperature control system.Electric heating sandwich pot has large heating area, uniform heating, high thermal efficiency, short boiling time of liquid, easy to control the heating temperature, etc.

  Rotor pump unique working principle works with a strong drive system, ensure that the pump can output a strong driving torque at low speed, can guarantee continuous, non-stagnant transferring, and ensure that the transferred material not damage.

Model	100	200	300
Volume	100L	200L	300L
Dimeter	700MM	800MM	900MM
Material	sus304	sus304	sus304
Temperature	145°C	145°C	145°C
Test pressure	0.44Mpa	0.44Mpa	0.44Mpa
Design pressure	0.35Mpa	0.35Mpa	0.35Mpa

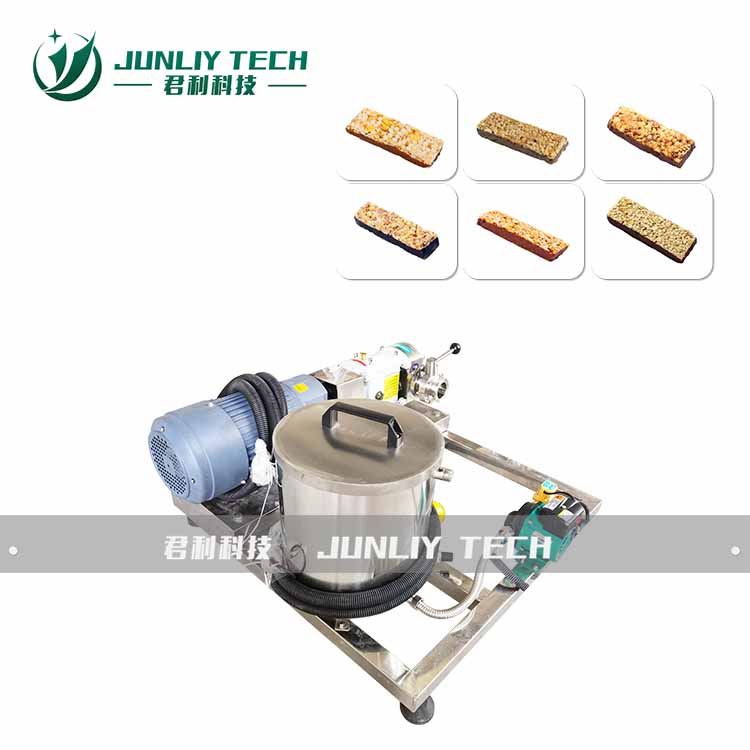

electrically-heated sandwich pot	cereal bar mixing machine	warm system
