Semi-Automatic Peanut Bar Pillow Packing Machine

  Semi-Automatic Peanut Bar Pillow Packing Machine suitable for biscuits, rice, snow cake, pie, chocolate, bread, instant noodles, moon cake, medicines, daily necessities, industrial parts, paper boxes or pallets and other packing regular object

1. This Semi-Automatic Peanut Bar Pillow Packing Machine has double motor, double  ransducer and PLC controller,flexible bag length setting and cutting ,saving  time and film.

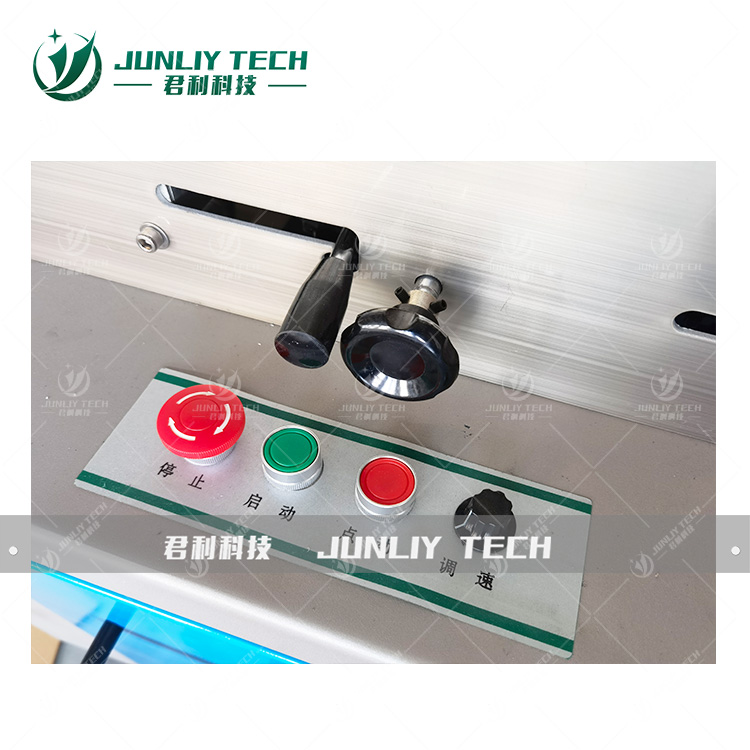

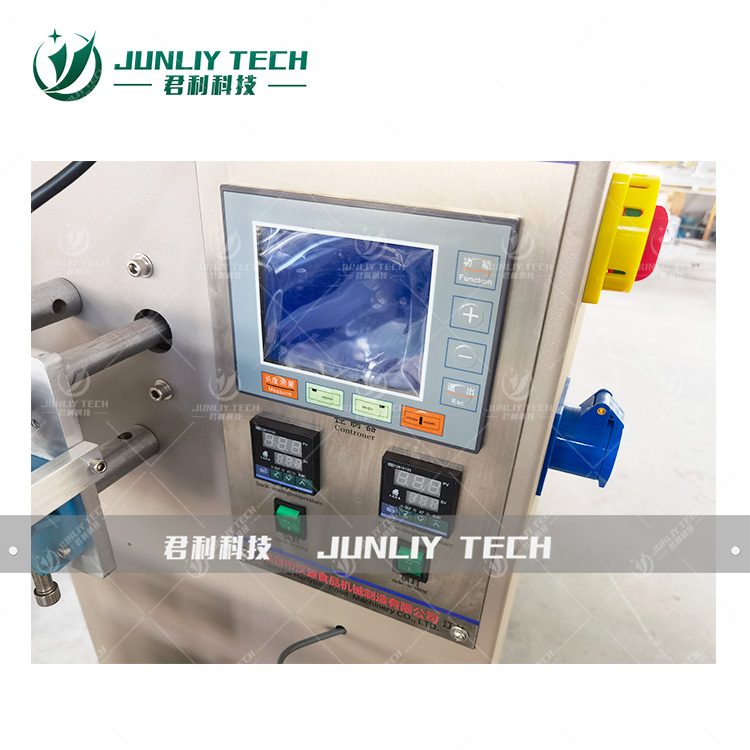

2. This Semi-Automatic Peanut Bar Pillow Packing Machine has  human-machine interface, convenient and quick parameter settings.

3.This Semi-Automatic Peanut Bar Pillow Packing Machine can self diagnosis failure function, failure displayed clearly.

4. This Semi-Automatic Peanut Bar Pillow Packing Machine has high sensitive optical electric color mark tracking system and digital input cut position, which make the  sealing and cutting more accurate.

5. Separated PID control system for temperature, suitable for various packing materials.

6. Stopping the machine in selected position, no sticking on the knife and no waste of the film.

7. Simple driving system, reliable working, convenient maintenance.

8. All controled by program, convenient for function adjusting and upgrading.

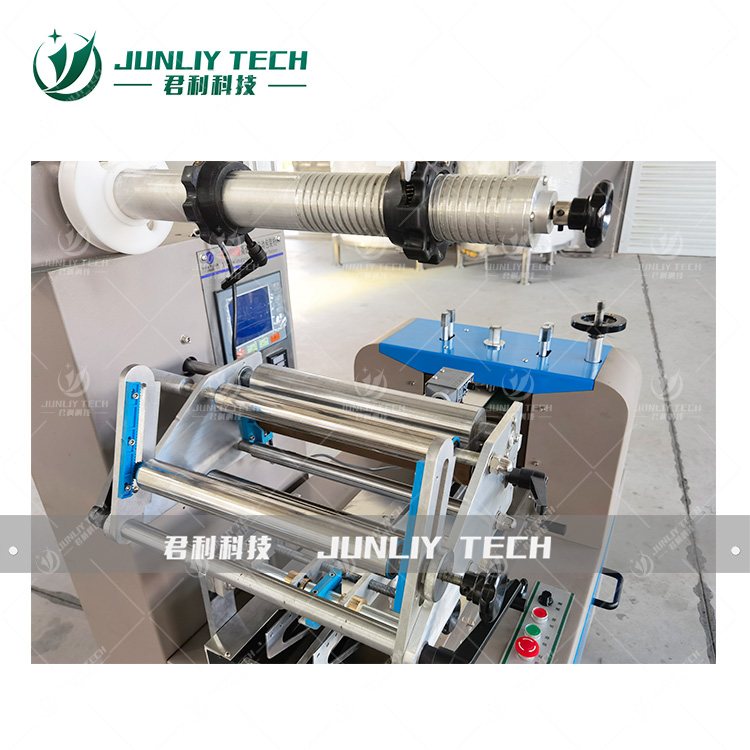

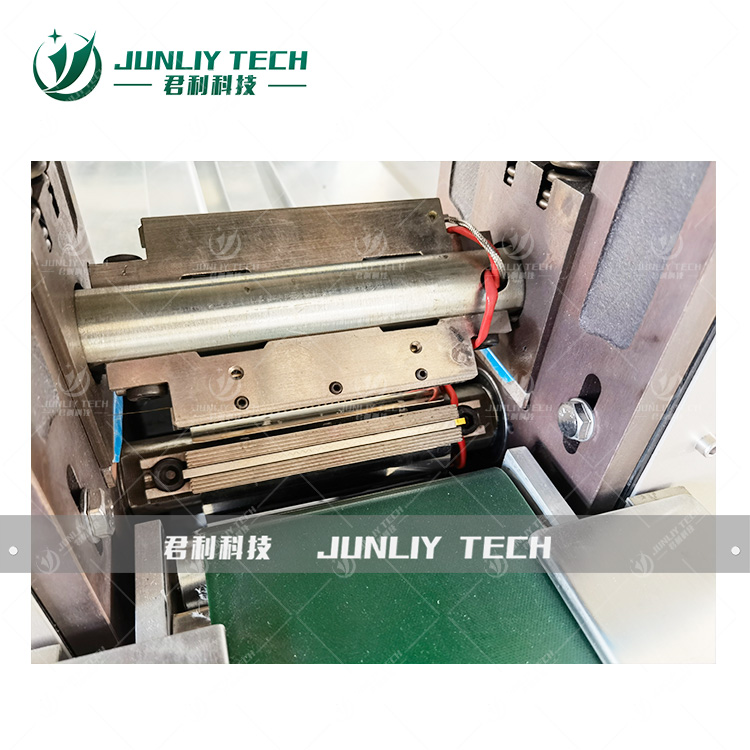

Positioned stop function without sticking knife and wasting film.Interface are easy and quick to set and operate.Failures can be self-diagnosised and displays clearly	Adopt multi linkage film reeling shaft to coordinate film pulling link,adapt to more film rolling materials,and smooth film rolling.	Independent PID temperature control, heating the double-side turntable sealing, sealing the back of the packaged product to ensure the tightness.	through intelligent system to control the parameter adjustment of the whole machine,the operation and the parameter adjustment of the machine parts are more convenient.

tem	Semi-Automatic Peanut Bar Pillow Packing Machine
Model	PL-250ZS
Filling Method	manual feeding
Bag style	Back sealed bag
Bag size	L65-190mm or 120-280mm; W10-110mm;H5-40mm
Packing speed	40-200 bags/min
Control system	PLC+ screen
material	stainless steel
voltage	AC 220V
Weight	G.W. 350kg
Dimension	L4000*W950*H1600 (mm)
Power	2.1KW
