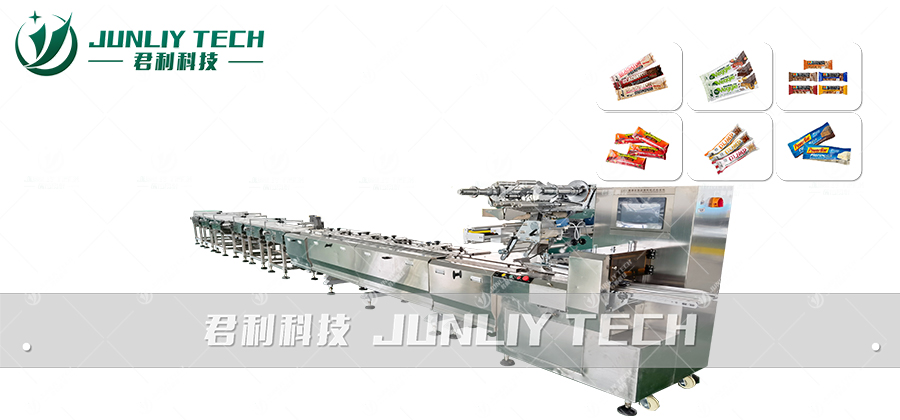

Automatic Peanut Candy Bar Pillow Packing Machine

  This Automatic Peanut Candy Bar Pillow Packing Machine is specially used for auto conveying, arranging, feeding and packing of square, round or strip products which move from front-end production equipment onto the conveyor belt of this Automatic Peanut Candy Bar Pillow Packing Machine in a neat way. No hand contact with products in the packing process, preventing food from second pollution.

  This Automatic Peanut Candy Bar Pillow Packing Machine is suitable for packing products as chocolate, products coated with chocolate, biscuits, wafer, bread, cakes and so on. Characteristics : 1.This machine adopts full servo intelligentized control and runs with low noise, which makes the workingcondition more  comfortable. 2.The machine is highly automated. It can be connected to production line directly; the processes of feeding,forming, filling and sealing are fully automatic. 3.The machine adopts industrial touch screen, human-machine interface. It intuitively shows the parameter andhas the menu operation, which makes operators easier to use. 4.The machine has device for film auto-connection, which makes processes of packing more smoothly. 5.Unique design of machine makes high speed auto-packing of products with smaller size come true.

1. Full servo intelligent control, the bag length is set and cut immediately. Just input the number of cutters for sealing, and the system can realize knife splitting operation.

2. Low noise operation and comfortable working environment.

3. The whole process of feeding, forming, filling and sealing is fully automatic, directly connected to the assembly line, with a high degree of automation.

4. No matter whether the material supply is continuous or intermittent, in any case, the system can automatically and accurately ensure that there are materials in each packaging film, realize the action of stopping the knife without feeding the film in case of lack of material, realize zero empty package and zero loss of packaging materials.

5. When the material deviates or shifts, the cutter stops. After the material is discharged, the cutter automatically resumes operation.

All the feeding belt are individual speed control by individual frequency converters, it can adjust the speed in the touch screen conveniently.	Different languages can be set according to different countries,which  is convenient for customers to operate the packaging machine.	photoelectric tracking system.	Double Paper rollers structure and fast automatic paper splicer designed .

Name of the machine	Automatic Peanut Candy Bar Pillow Packing Machine
Voltage	380V/50Hz or 220V/60Hz(Please inform us of special voltage in advance）
Power	15kW
Capacity	200-240bags/min
Dimension	10000×3000×1450mm
Weight	2000kg

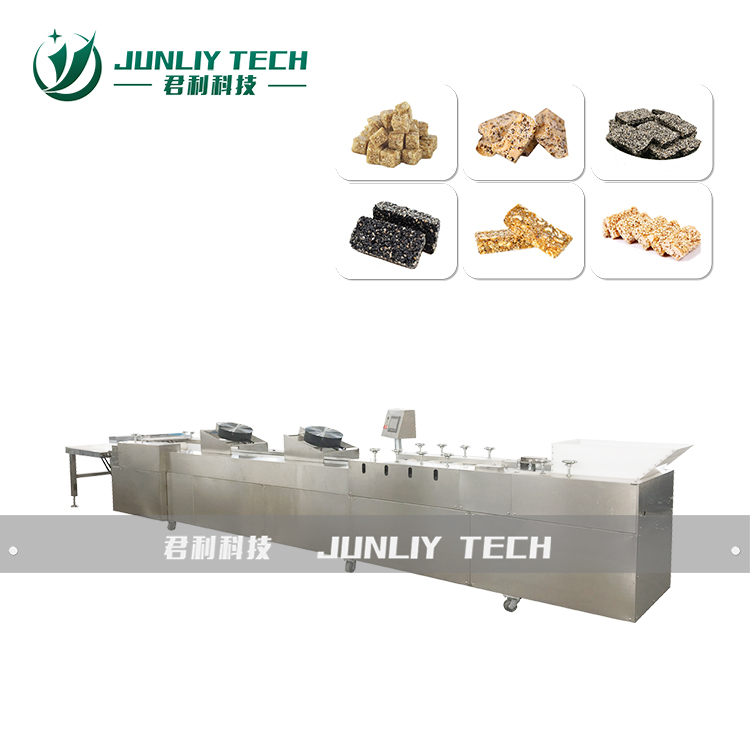

peanut candy bar machine	nougat bar machine	cereal bar machine	rice crispy bar machine

  Dongtai Junliy  Food Machinery Manufacturing Co.,Ltd. is a professional manufacturer of candy food forming machines, candy food production line with more than ten years experience in manufacturing and service. We are professional to supply the automatic peanut candy cutting machine, rice candy moulding machine, cereal bar production line, protein bar production line, peanut candy chikki production line, puffed rice ball production line, cereal ball production line ，weight detection machine,metal detection machine,and other food machines.roducts have been exported to dozens of countries like USA,UK,Spain,Canada,Thailan etc.We firmly believe that QUALITY FOR SURVIVAL,CREDIBILITY FOR DEVELOPMENT.Welcome to visit to us!You may follow and click subscribe.
