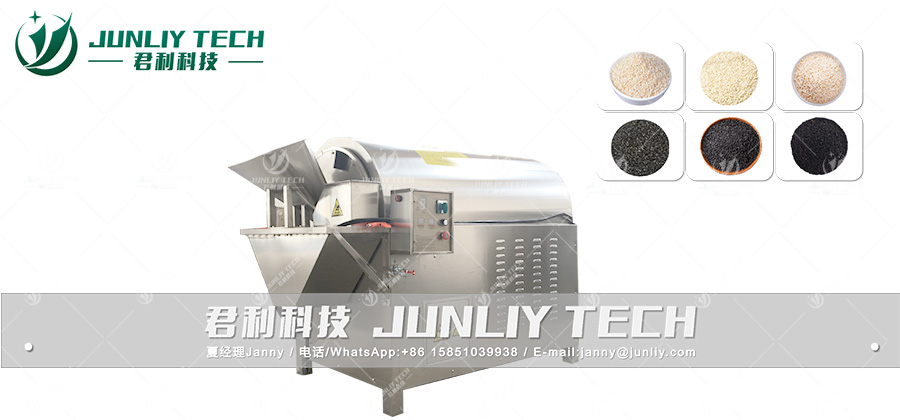

Electromagnetic Heating Sesame Roasting Machine

  The Electromagnetic Heating Sesame Roasting Machine Cheap Price for Sale is mainly composed of a framework, a hopper, a drum, etc. The motor drives the gear shaft through the chain, and the gear on the shaft drives the big gear to rotate the drum continuously and evenly. The material is fed from the hopper into the drum for roasting.

  This Electromagnetic Heating Sesame Roasting Machine suitable for roasting all kinds of dried fruits and nuts, such as chestnuts, peanuts, melon seeds, pine seeds, hazelnuts, almonds, rapeseeds, coffee beans, dates, sesame seeds, walnuts, all kinds of beans, wheat, rice, etc.

  Electric, coal, firewood and gas heating type optional, gas heating type, equipped with energy-saving burner, can adjust the firepower; electric heating type, with temperature controller, can adjust the temperature.

1,This Electromagnetic Heating Sesame Roasting Machine is make up of a rack, a pot body, an electromagnetic system, a transmission system, a control system.

2,The inner tank of this Electromagnetic Heating Sesame Roasting Machine is made of 304 stainless steel, which is more magnetic.

3,This Electromagnetic Heating Sesame Roasting Machine with high degree of automation: One-key operation of the control system, button-type control of forward and reverse switches.

4,The heat preservation of this Electromagnetic Heating Sesame Roasting Machine adopts glass fiber blanket with uniform thickness, good flatness and good heat preservation effect.

304 SS Body	Large Feeding Hopper	Radiator hole	Easy  Operating Control Panel

Item	30	50	100	150	200	300	500
Voltage	220/380V	380V	380V	380V	380V	380V	380V
Frequency	50HZ	50HZ	50HZ	50HZ	50HZ	50HZ	50HZ
Rotate speed r/min	12	12	12-18	12-18	12-18	12-18	12-18
Power(kw)	4	12-18	24-36	36-45	45-54	54-60	80-100
Motor(kw)	0.55	0.55	0.75	1	1.5	3	3
Roller Dia(mm)	Ø800	Ø800	Ø900	Ø900	Ø1000	Ø1000	Ø1000
Volume(L)	110	200	400	600	800	1000	1500-2000
Load capacity	20-25	30-45	60-90	90-140	100-180	200-250	300-450
Capacity(kg/h)	40-70	100-150	150-200	200-300	250-350	350-500	500-1000
Size(m)	1.5×0.8×1.4	1.7×0.8×1.5	2.2×0.9×1.6	2.5×0.9×1.6	3.2×1.1×1.7	3.5×1×1.7	4.5×0.9×1.6
Weight(Kg)	300	400	700	800	900	1200	1800
